Renovent Sky 150/200/300 Plus

Compact and Space-Saving

The Renovent Sky 150/200/300 Plus is a ventilation unit with heat recovery for ceiling or wall mounting. The Plus versions have additional connection options for accessories such as CO₂ sensors and post-heaters.

Central Ventilation

The Renovent Sky is an appliance for balanced heat recovery ventilation (HRV/ERV) and it is available with ventilation capacities of 150, 200 and 300 m3/h. In addition to the standard version, a Plus version is available which has additional connection options for CO₂ sensors and a postheater. The Plus version is also fitted with a potential-free input and a 0-10 V input. All types are recommended to be paired with the Air Control wired remote control for easy operation and timer control. This is a control unit with timer function that can also be used for adjusting the appliance.

The Renovent Sky 150 and 200 are unique for their very low installation height of no more than 198 mm. That makes these versions highly suitable for renovation of compact dwellings such as student flats or senior citizens dwellings. The Renovent Sky 300 is highly suitable for ventilation of larger homes, apartments and offices where the available space makes this appliance the best solution.

Silent

Its design with, for instance, metal housing, slowly running fans and low internal resistance, makes the sound level of the Renovent Sky very low. In addition to the usual flexible muffler, various special muffler modules are available for the Renovent Sky 150 and 200. These modules are geared for the compact design and can be attached directly to the appliance.

Enthalpy Exchanger

In wintry conditions, the enthalpy exchanger ensures that part of the moisture in the exhaust air is transferred to the supplied dry outdoor air. This prevents excessive dehydration of the indoor air. The enthalpy exchanger is available for the Renovent Sky 300.

Extension Options

The Renovent Sky Plus can be extended with separate CO₂ and RH sensors, Brink Home LAN & WiFi for app control, and the Pure Induct Ionisation Air Filter.

The Advantages at a Glance

Flexible assembly for wall and ceiling installation.
Compact size.
Easy to install and to service.
Can be extended with Brink Home.
For healthy and comfortable living and working conditions.

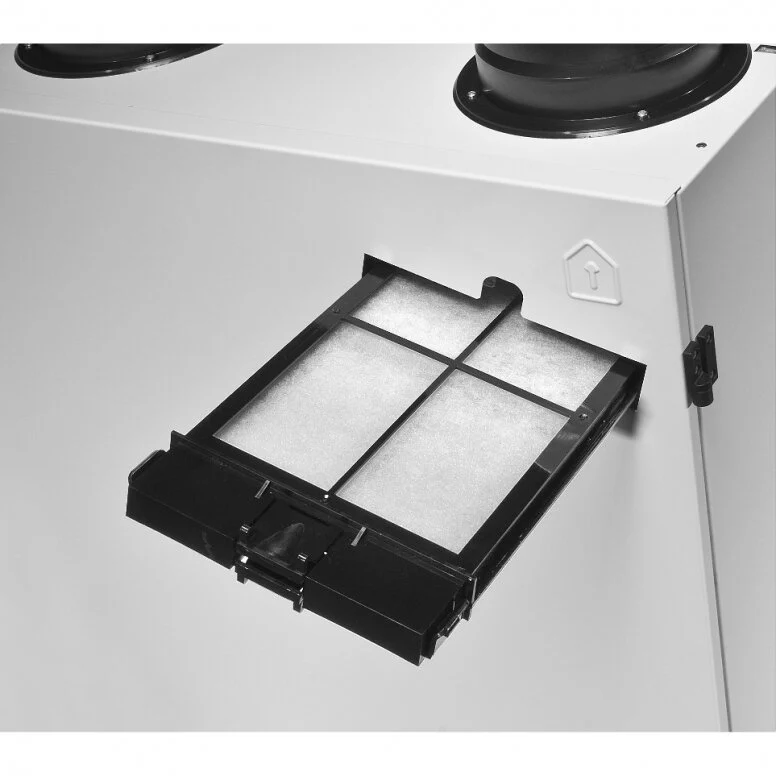

The right filtering always guarantees clean air.
Available with enthalpie exchanger.
High efficiency heat recovery tested under EN13141-7.
Constant flow control.
100% summer bypass.
Low auxiliary energy consumption through application of EC fans.
Ecodesign energy label A, label A+ (with demand control).
Manifolds fitted with acoustic insulation.

More Information

Click Here to download a Brochure for the Renovent Sky 150/200/300 Plus.
Click Here to download a Technical Sheet for the Renovent Sky 200 Plus.
Click Here to download a Technical Sheet for the Renovent Sky 300 Plus.
Click Here to download an Installation Manual for the Renovent Sky 200 Plus.
Click Here to download an Installation Manual for the Renovent Sky 300 Plus HRV.
Click Here to download an Installation Manual for the Renovent Sky 300 Plus ERV.
