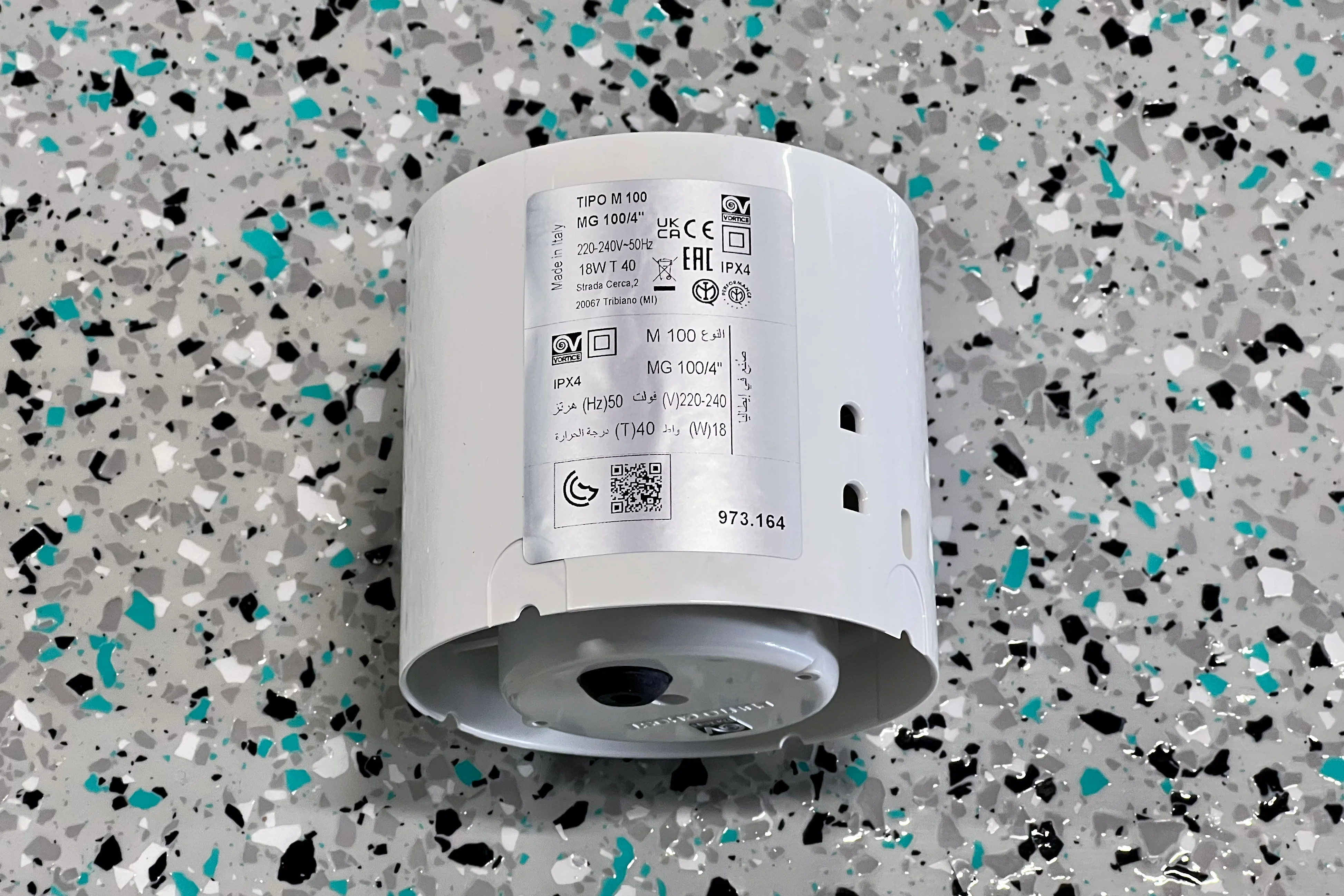

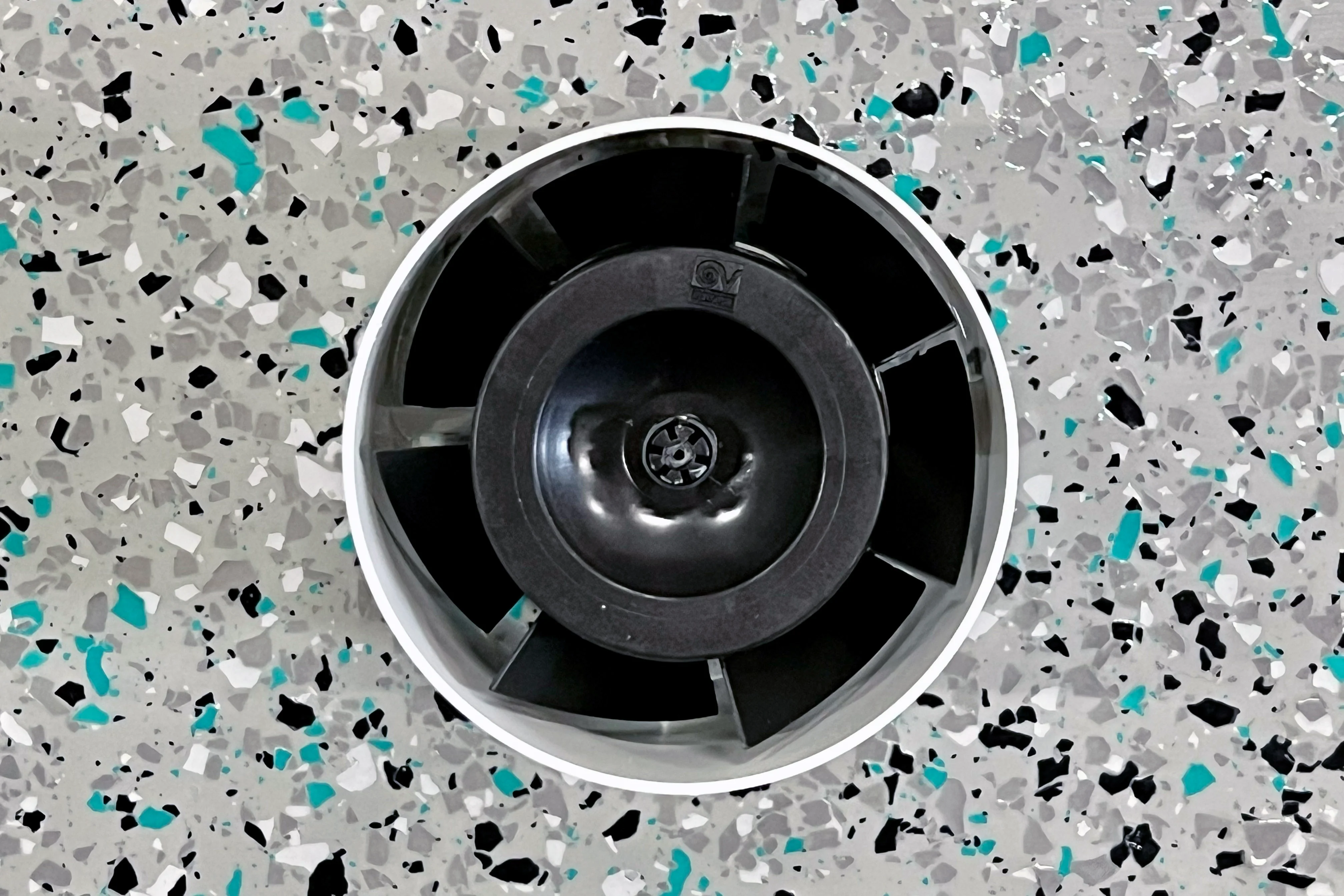

100mm Compact Inline Fan for Tight Spaces: Vortice Punto Ghost (AC Motor)

Vortice Punto Ghost: Compact Inline Fans for Tight Spaces

The Vortice Punto Ghost is a compact fan designed for installation in tight spaces. It's suitable for the following applications:

• In walls.
• In ceilings.
• In ducts.
• In other tight spaces.

Description

• In-line axial fan.
• Suitable for wall installation.
• Long life ball bearing motors which are designed for 30,000 hours continuous, trouble free operation.
• Motor with shielded poles and ball bearings.
• Can be used as temperature blenders in adjacent rooms.
• IPX4 rating.
• Manufactured by Vortice in Italy.

Specifications

100mm Model

• Absorbed power max: 18 W.

• Max airflow: 80 m3/h.
• Pressure max: 25 Pa.
• RPM: 2,415.
• Sound pressure level at 3m: 39 dB(A).
• Diameter: 99 mm.
• Depth: 92 mm.
• Weight: 430 g.
